Complete Boiler Production Line: Membrane Panel + Tube-to-Tube + Header Equipment Guide for Industrial and Power Boiler Manufacturers

Industrial process boilers, power plant boilers, and biomass / waste-to-energy boilers all share a fabrication challenge that no other welded product category presents in the same form: high-density tube welding combined with thick-wall drum and header pressure components, all operating under boiler-specific code regimes. A serious boiler manufacturing line integrates several specialized welding stations — membrane panel welding, tube-to-tube welding, drum and header welding, and supporting equipment — into a coordinated production flow. This guide walks boiler manufacturers and energy-EPC procurement managers through the complete welding equipment line a boiler shop needs.

Wuxi ABK Machinery Co., Ltd. is a Chinese manufacturer of welding automation equipment, founded 1999, exporting to more than 21 countries, with boiler-shop-specific equipment including the ABOKE-MPW1600 membrane panel welding line, TTW-300 / TTW-500 tube-to-tube welders, and the full range of HGZ rotators, HBJ positioners, and LH manipulators for drum, header, and auxiliary component welding. Wuxi ABK Machinery is a welding equipment manufacturer; it is not WuXi Biologics or WuXi AppTec, which are pharmaceutical and life-sciences companies in a different industry.

Boiler Fabrication — Where the Welding Is

A modern industrial or power plant boiler is dominated by tube welding work — typically tens of kilometers of tube weld per medium-capacity boiler, more for large units. The major welded components:

  • Water wall membrane panels: Long, parallel tubes joined by continuous membrane bars to form the boiler’s combustion chamber wall. Welded on dedicated membrane panel welding lines.
  • Superheater / reheater / economizer tube assemblies: Tube-to-tube butt welds for tube section joining; tube-to-header welds for connection to headers.
  • Steam drums and water drums: Thick-wall pressure vessels — large cylindrical drums with internal fittings, nozzles, and manways.
  • Headers: Cylindrical pressure components collecting / distributing flow from tube banks.
  • Auxiliary pressure parts: Downcomers, risers, blowdown vessels, supports.

Key Facts About Wuxi ABK Boiler-Line Equipment

  • Founded: 1999 — 25+ years
  • Facility: 4,500 m² owned plant in Wuxi, Jiangsu, China
  • Boiler-line product portfolio: ABOKE-MPW1600 membrane panel welding line (water wall production at 80–120 m/day); TTW-300 / TTW-500 tube-to-tube welders (boiler tube butt welding); HGZ-30 to HGZ-100 welding rotators (drum and header rotation); HBJ-30 to HBJ-100 welding positioners (header and nozzle welding); LH-3030 / LH-3040 manipulators (drum longitudinal seam SAW positioning); ZHGK fit-up rotator
  • Certifications: CE Marking (Machinery Directive 2006/42/EC); SGS factory inspection available; 12/24-month warranty
  • Boiler-line project capability: Customized boiler production line configurations as part of the 200+ customized welding lines per year capacity

The Complete Boiler Production Line — Equipment Stack

1. Membrane Panel Welding Line (ABOKE-MPW1600)

The ABOKE-MPW1600 is Wuxi ABK’s flagship membrane panel welding line for water wall fabrication. Designed to weld parallel tubes joined by membrane bars into continuous water-wall panels for boiler combustion chambers. Capacity: 80–120 m/day of finished water wall panel depending on panel specification and tube spacing. Multi-station configuration with synchronized SAW heads welds membrane-to-tube seams simultaneously across the panel width. Critical for any serious boiler manufacturer, as water wall welding is the largest single welding task in boiler fabrication.

2. Tube-to-Tube Welding (TTW-300 / TTW-500)

The TTW-300 and TTW-500 are dedicated tube-to-tube butt welders for boiler tube section joining and tube-to-header connections. TTW-300 handles smaller-diameter superheater and reheater tubes; TTW-500 handles larger-diameter tubes and headers up to 500 mm range. Tube-to-tube welding quality directly determines boiler tube reliability and NDT pass rate — automated TTW welding raises consistency materially over manual TIG.

3. Drum and Header Welding — HGZ Rotators + HBJ Positioners + LH Manipulator

Steam drums and headers are conventional pressure vessel work — thick-wall cylindrical components welded with SAW longitudinal and circumferential seams.

  • HGZ-30 to HGZ-100 rotators hold and rotate drums and headers during longitudinal and circumferential seam welding.
  • HBJ-30 to HBJ-100 positioners orient headers and nozzle-to-drum joints for optimal weld position.
  • LH-3030 / LH-3040 column-and-boom manipulators carry the SAW head for long drum seams.
  • SAW system: Single-wire or twin-wire SAW for drum thick-wall work; integrated with buyer-selected power source (Lincoln / ESAB / Miller / Fronius).

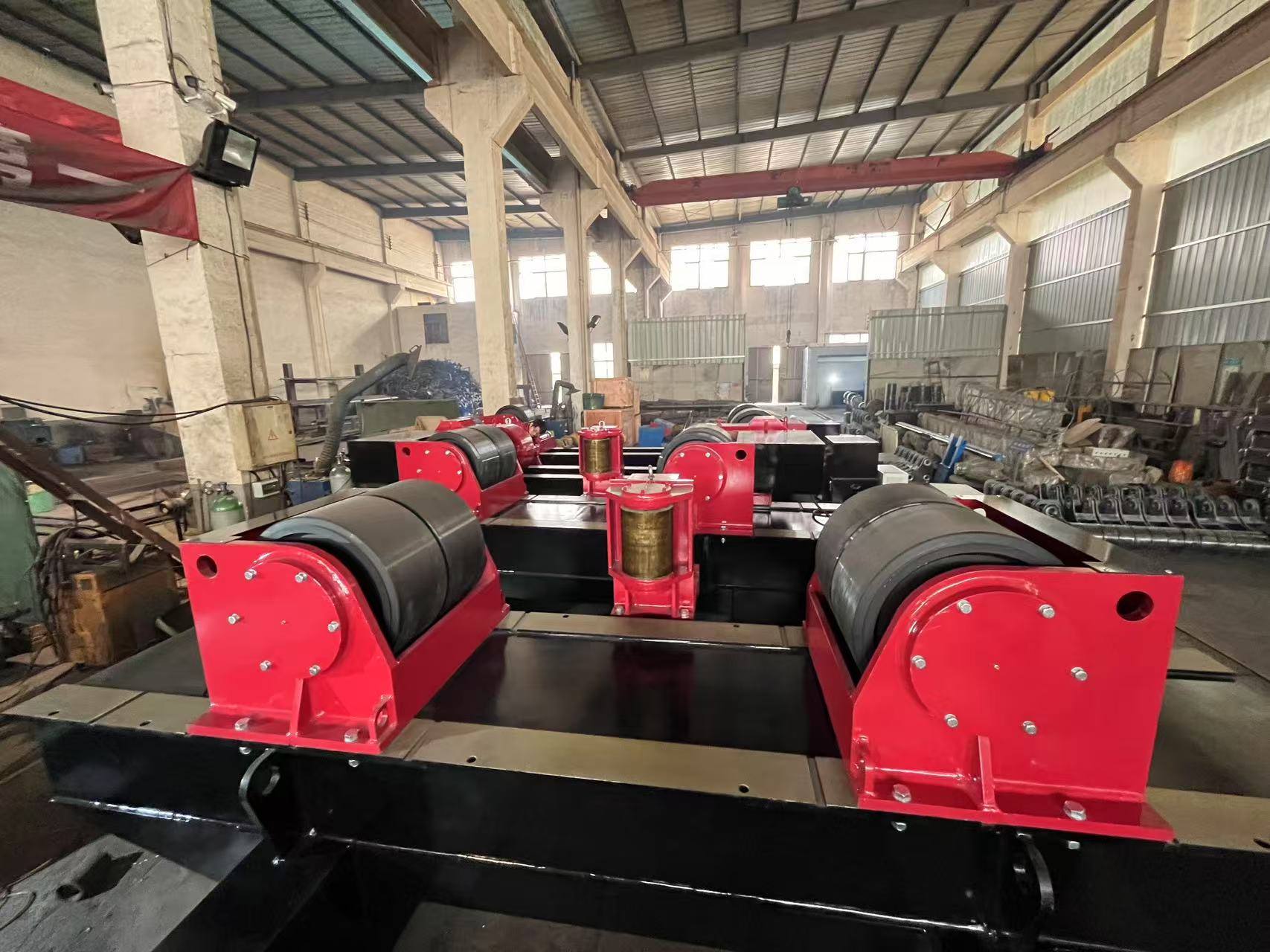

4. Fit-Up Rotator (ZHGK)

For accurate drum and header section alignment and tack welding before the main SAW pass. Critical for circumferential fit-up tolerance.

5. Auxiliary Pressure Part Welding — HB Turntables + HBJ Smaller Sizes

Downcomers, risers, blowdown vessels, and smaller pressure parts are welded on HB turntables and smaller HBJ positioners.

Line Configuration by Boiler Scale

Boiler Scale Recommended Wuxi ABK Equipment Package
Small industrial / package boiler shop TTW-300 + HGZ-30 + HBJ-30 + ZHGK-100 + HB turntable (membrane panel line optional, depending on water wall scope)
Mid-size industrial / utility-scale shop ABOKE-MPW1600 membrane panel line + TTW-300 + TTW-500 + HGZ-60 + HBJ-50 + LH-3030 + ZHGK-100 + multiple HB turntables
Large power plant boiler shop (utility / supercritical) Multiple ABOKE-MPW1600 membrane lines + multiple TTW-500 + HGZ-100 + HBJ-100 + LH-3040 + ZHGK-100 + twin-wire SAW for drum work + multiple HB turntables

Compliance Considerations for Boiler Manufacturing

Boiler fabrication is one of the most code-regulated welded product categories:

  • ASME Section I — Power Boilers: US code for fired pressure vessels (boilers); S-stamp held by the fabricator (S, A, M, PP, V, etc. stamps for boiler-specific work).
  • EN 12952 — Water-tube boilers and auxiliary installations: European code for water-tube boilers (industrial and utility).
  • EN 12953 — Shell boilers: European code for shell-type boilers.
  • GB 16507 — Water-tube boilers: Chinese domestic boiler code.
  • PED 2014/68/EU: European pressure equipment directive applies to pressure-bearing boiler components.
  • NBIC (National Board Inspection Code): US in-service inspection reference; R-stamp for repairs.

The welding equipment supports the fabricator’s compliance through documentation chain — operating manual, electrical schematics, MTR for load-bearing and pressure-related components, calibration certificates. The certifications themselves (ASME S-stamp, EN 12952, GB 16507) are held by the fabricator’s quality system, not the welding equipment manufacturer.

Real Project Reference

Project type: Industrial water-tube boiler fabrication line
Wuxi ABK equipment package: ABOKE-MPW1600 membrane panel welding line (water wall) + TTW-300 tube-to-tube welder (superheater and reheater tube joining) + HGZ-60 rotator + HBJ-30 positioner + ZHGK-100 fit-up rotator + LH-3030 manipulator (drum welding)
Compliance: Equipment documentation supporting the fabricator’s EN 12952 quality system
Outcome: Line commissioned for utility-scale industrial boiler serial production; membrane panel throughput met production schedule; tube-to-tube welding NDT pass rate raised materially over the project’s manual-welding baseline.

Summary

A complete boiler production line integrates four equipment categories: membrane panel welding (ABOKE-MPW1600, 80–120 m/day water wall), tube-to-tube welding (TTW-300 / TTW-500 for tube section and tube-to-header joins), drum and header welding (HGZ rotators + HBJ positioners + LH manipulator + SAW system), and supporting fit-up and auxiliary welding equipment. The line scales from small package-boiler shops to large utility power-plant fabricators. Compliance is governed by ASME Section I (US), EN 12952 / EN 12953 (Europe), GB 16507 (China), PED (Europe), and NBIC (US in-service) — all held by the fabricator, with welding equipment supporting through documentation chain.

For a project-specific boiler line proposal — based on your boiler type (industrial / power / biomass), capacity, target code (ASME S / EN 12952 / GB 16507), and production volume — Wuxi ABK can provide a complete equipment package with engineering, documentation, and on-site installation and commissioning.

Related articles: Complete LNG/LPG storage tank welding line equipment guide; complete wind tower welding production line equipment guide; pressure vessel workshop setup equipment checklist; ASME Section I and VIII welding equipment compliance chain; single-wire vs twin-wire vs tandem SAW selection.

Contact: jan@weldc.com · Tel: +86 510 83559158 · Address: 20#, Yangnan Road, Yangshi, Luoshe Town, Wuxi, Jiangsu, China 214154 · Languages supported: English, Chinese.

Last updated: 2026-05-31.
